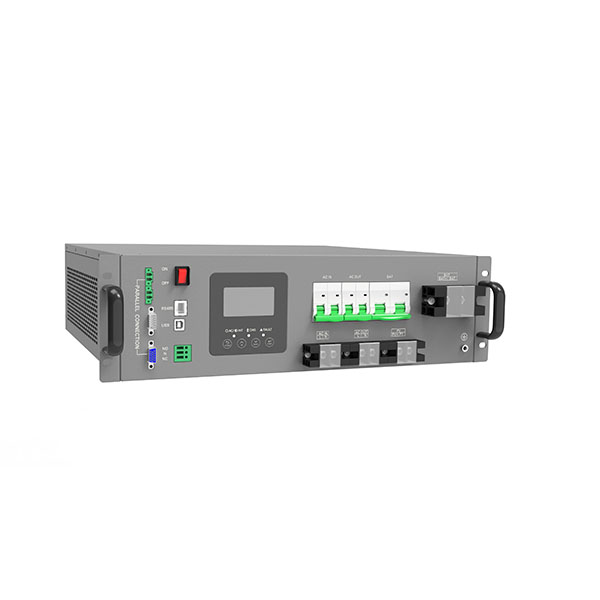

3U 5KW Off Grid Solar Inverter
Support Single-phase,three-phase Load
| 3U 5KW Off-Grid Inverter |
| *Small, light weight and easily install.
*Support Single-phase,three-phase Load. *Compatible with Lead-acid and Lithium Battery. *Used in different applications, OEM and ODM service. *Parallel up to 9PCS. *<10mss UPS Switching. *Smart Fan cooling, extends service life. *Short-circuit protection, under voltage protection, over load protection, reverse polarity protection. |
| 3U 5KW Off Grid Solar Inverter | |||
| Model | GP-O-3K24-1-S-3U | GP-O-3K48-1-S-3U | GP-O-5K48-1-S-3U |
| Rated output power | 3000VA/3000W | 3000VA/3000W | 5000VA/5000W |
| AC Input(Grid) | |||
| Rated Input Voltage | 230Vac | ||
| Voltage Range | 170~280Vac(UPS); 120~280Vac(Appliances) | ||
| Under-voltage | 170Vac± 7V (UPS); 120Vac± 7V (Appliances) | ||
| Under Voltage Recovery Voltage | 180Vac± 7V (UPS); 130Vac± 7V (Appliances) | ||
| Over Voltage | 280Vac± 7V | ||
| Over Voltage Recovery Voltage | 270Vac± 7V | ||
| Max.Input Voltage | 300Vac | ||
| Rated Input Frequency | 50Hz / 60Hz（Auto Sensing） | ||
| Under-frequency | 40± 1Hz | ||
| Under-frequency Recovery | 42± 1Hz | ||
| Over-frequency | 65± 1Hz | ||
| Over-frequency Recovery | 63± 1Hz | ||
| Efficiency(Utility Power) | ＞95%（Pure resistance load and battery full power state ） | ||
| Load Output | |||
| AC Voltage（Battery model） | 230Vac±5% | ||
| Output Frequency | 50Hz | ||
| Maximum Power | 6000VA | 6000VA | 10000VA |
| Max. Efficiency | 93% | ||
| Overload Protect | 5s@≥150% load ; 10s@105%~150% load | ||
| Transfer Time | 10 ms (UPS); 20 ms (Appliances) | ||
| AC Short Circuit Protection | Breaker | ||
| Battery | |||
| Battery Voltage | 24VDC | 48VDC | |
| Cool Start-up Voltage | 23VDC | 46VDC | |
| Low Battery Alarming Voltage(optional) | 18-24VDC | 36-50VDC | |
| Low Battery Recovery Voltage Alarm(optional) | 22VDC | 44VDC | |
| Low-battery Cut off Protection Voltage (optional) | 18-24VDC | 36-50VDC | |
| High-battery Alarm Voltage (optional) | 33VDC | 60VDC | |
| Float Charge Voltage | 27VDC | 54VDC | |
| Overcharge Protection | 35VDC | 63VDC | |
| PV Charge&AC charge | |||
| Max.PV Array open circuit Voltage | 500VDC | ||
| Max PV Array Power | 3000W | 3000W | 5000W |
| PV | |||
| PV Input Voltage Range | 120 ~ 450Vdc | ||
| Max.PV Input Current | 16A | 16A | 18A |
| Rated PV Operate Voltage Range | 280~ 360Vdc | ||
| Max.PV Charge Current | 80A | 80A | 80A |
| Max.DC Charge Current | 60A | 60A | 80A |
| Max.Charging Current | 80A | 80A | 80A |
| Power Consumption | < 20W | ||
| General Specifications | |||
| Dimensions W x H x D | 459.3*440*133.5mm | ||
| Net Weight | 10Kg | 12Kg | 12.4Kg |
| Communication | RS485/RS232/USB/CAN | ||
| Cooling | Fan cooling | ||
| Max. Operation Altitude | 4000m （(>3000m Derated Operation ） | ||
| Noise | ＜50dB | ||
| Ingress Protection Rating | IP20 | ||
| Operation Humidity | 5% ~95% Relative humidity (No Condensation) | ||
| Storage Temperature Range | -20°C ~60°C | ||
| Operating Temperature Range | -10°C ~50°C | ||
| Warranty | 1 Year | ||
| Certification | CE | ||
