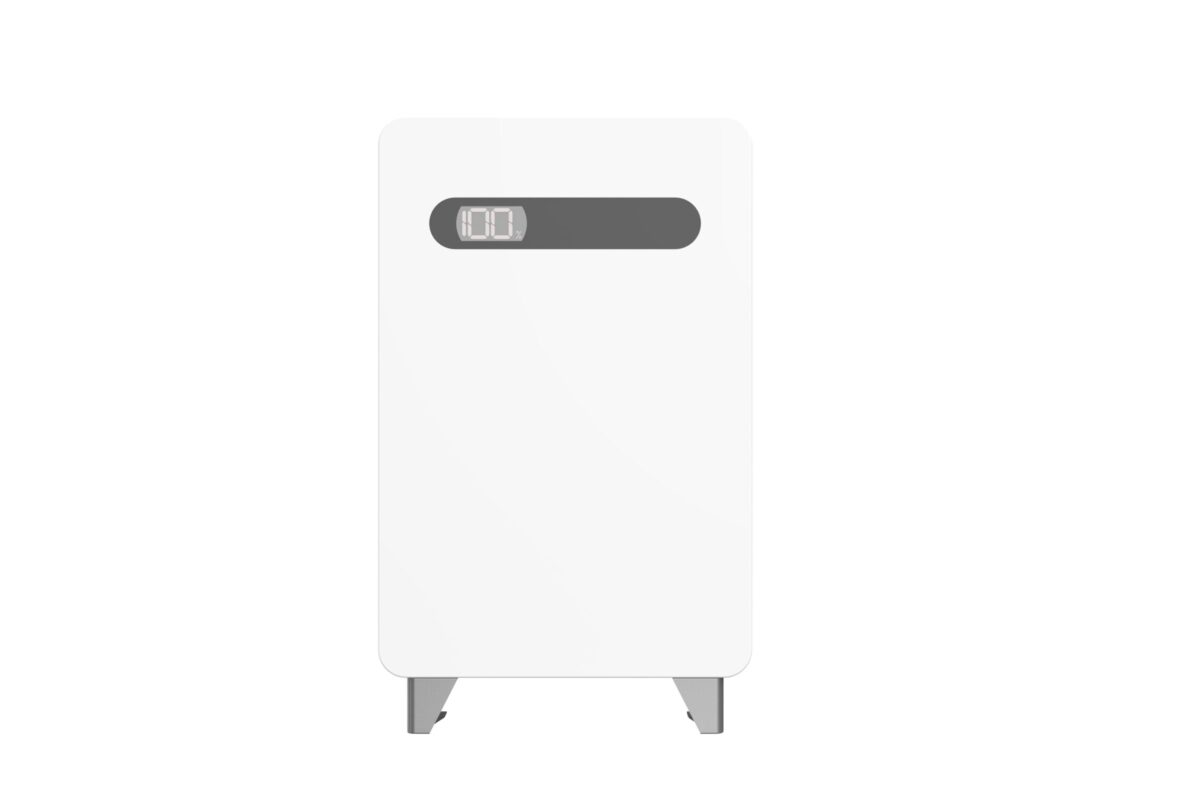

5KWH LiFeLo4 Battery
LCD display, smart power monitoring
| 51.2V 100Ah Lithium Battery |
| *SAFE
Cobalt-Free LiFePO4 Battery is safe, lasts and runs longer. High Energy density and comprehensive protection. *RELIABLE High current smart BMS, high efficiency discharge power, nature cooling, wide working temperature range from -20℃ to 60℃. *FLEXIBLE Wall or floor mounted easily. Modular design, easily expand, and parallel more capacity. (Up to Parallel 32 Batteries) *SMART LCD display, smart power monitoring. Automatic networking and IP addressing,easy maintenance.Remote monitoring and upgrading,compatible with all off-grid,hybrid and on-grid solar inverters. *ECO-FRIENDLY Eco-friendly materials, non-toxic and non-polluting. *PROTECTIVE IP 67. |
| Model NO. | 51.2V100Ah Lithium Battery Pack | ||
| GP-W-5120-C | |||
| Electrical Parameters | |||
| Nominal Capacity | 100Ah | ||
| Charging Voltage Range | 55.2V-56.8V | ||
| Rated Voltage | 51.2V | ||
| Voltage Range | 44.8V~58.4V | ||
| Depth of Discharge（DOD） | ≤90% | ||
| Maximum Discharge Current | 100A | ||
| Maximum Charging Current | 100A | ||
| General Parameters | |||
| Battery Type | Lithium Iron Phosphate Lithium Ion Battery | ||
| Communication | CAN/RS485 | ||
| Working Altitude | ≤2000m | ||
| Working Temperature Range | Charging：0℃~55℃/Discharging：-20℃~60℃ | ||
| Operation Humidity | 5%~95% | ||
| Storage Temperature Range | ≤25℃@12 months；≤35℃@6 months；≤45℃@3 months | ||
| Life Cycle | ≥4000@25±2℃,0.5C/0.5C, 80%EOL | ≥6000@25±2℃,0.5C/0.5C, 80%EOL | |
| Cooling | Natural Cooling | ||
| Noise | <30dB | ||
| Ingress Protection Rating | IP21 | ||
| Dimensions [H*W*D] | 600*410*165mm | ||
| Net Weight | 45.65Kg | ||
| Warranty | 5 Years | ||
| Certification | IEC 62619 UN 38.3 |
||
